Model: UPB-RTFI-060 (60W FIXED SOLAR TILE)

Component size: 847 * 417 * 20mm

Glass size: 816 * 410 * 3.2mm

Component weight:4.11kg



【Mechanical load】

Maximum static load on the front: 5400Pa

Maximum static load on the back: 2800Pa

Hail test: 25mm hail, impact at a speed of 23 meters per second











   Features

♦ Durable and Reliable, Principal materials include aluminium alloy, tempered glass, polymers and monocrystal silicon whose use period up to 25 years and we offer 10-year total warranty.

♦ Firm and Stable, Every purlines are made of anti-corrosive pines which make it superior in wind-resistance.

♦ Easy and Fast Installation, Each tile, as individual, can be easily installed or disassembled and no expertise required.

♦  A Breathing Roof,The hollow design of the module and the porous arrangement design of the water guide plate.

♦ Save Your Budge

♦ IEC 61215 & IEC 61730 & MCS & TUV CE Certified

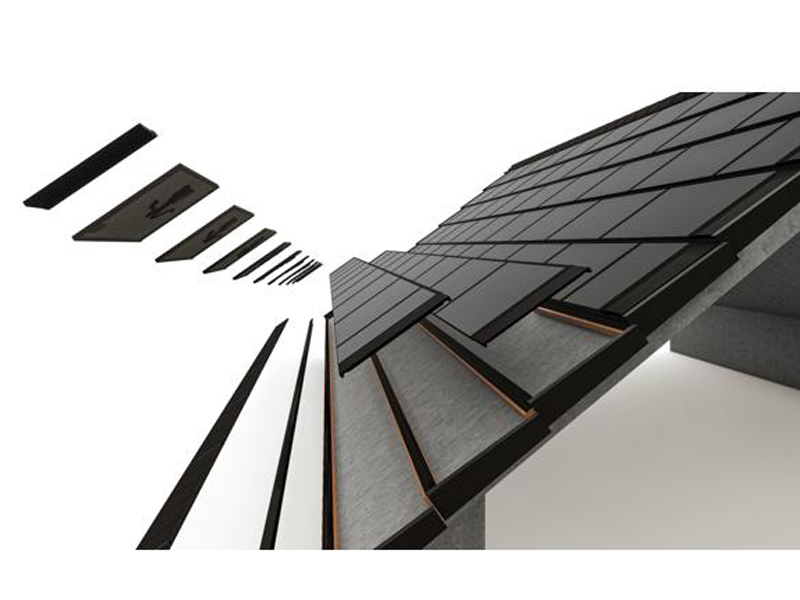

   Layered Diagram Display





  Specs

  Physical Characteristics

Dimension (mm) 427*417*20
Weight (kg) 4.11
Dimension of Cell (mm)

182*92

Perc monocrystal, 16 pcs



 Auxiliary Materials

Black structural adhesive

Front pressure blocks

M4*16 pan head self-tapping screws

M5*50 self-tapping screws



  Performance Characteristics

Junction Box IP67, one diode
Safety Level Class Ⅱ
Fire-rating Class C
Hail-rating Class 3 (25.4 mm/1 in. in diameter)
Agency Approval IEC 61215, IEC 61730,TUV CE, MCS

STC (Irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25 °C or 77 °F)



Voc (V) 11.02
Isc (A) 6.75
Vmp (V) 9.48
Imp (A) 6.45
Pmax (W) 60



  Electrical Characteristics

Maximum series fuse rating (A) 15
Maximum system voltage (V) 1000
Maximum static load (front, Pa) 5400
Maximum static load (back, Pa) 2800
Working Temp -40℃+85℃
Current/Voltage Tolerance  ±4%/±3%



  Package Characteristics



Single Carton (pcs/kg) 40/160
Single Container (pcs) 3840
