Solar panel stacked flat roof tiles Overlap 75W solar tile frameless type V3.0

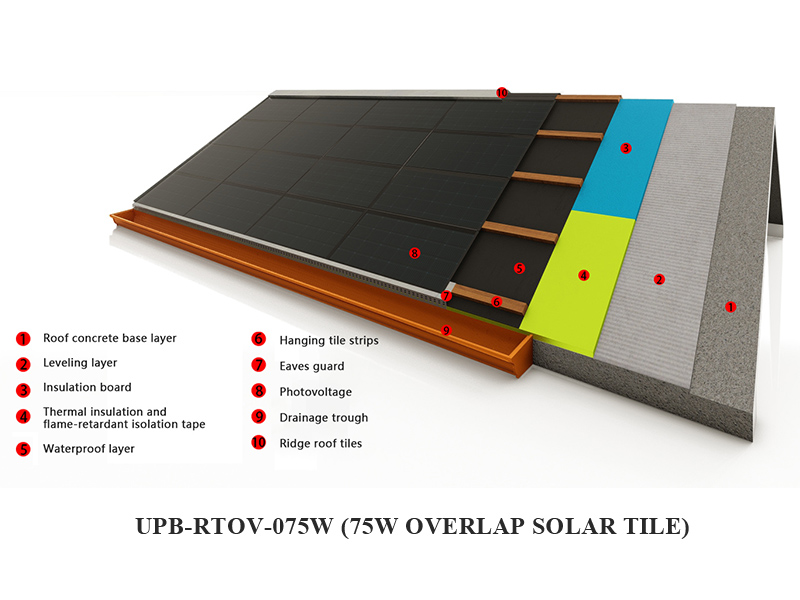

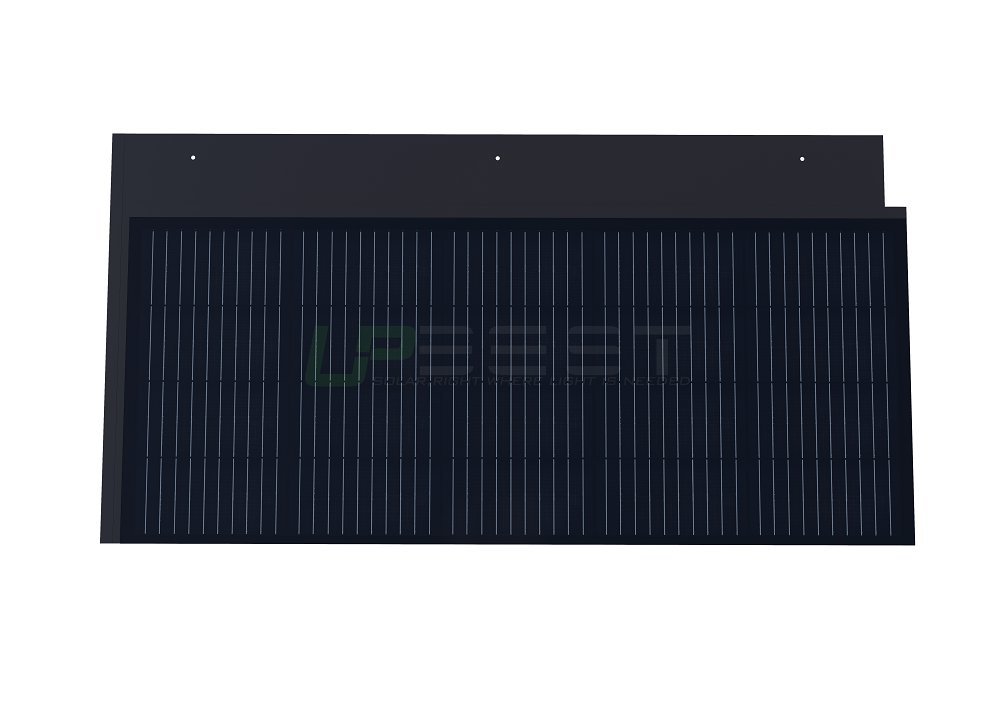

Model: UPB-RTOV-075W (75W OVERLAP SOLAR TILE)
【Component size: 973*500*8.6mm】
【Glass size: 182*91mm】
【Component weight：9.3kg】
【Mechanical load】
Maximum static load on the front: 5400Pa
Maximum static load on the back: 2800Pa
Hail test: 25mm hail, impact at a speed of 23m/s

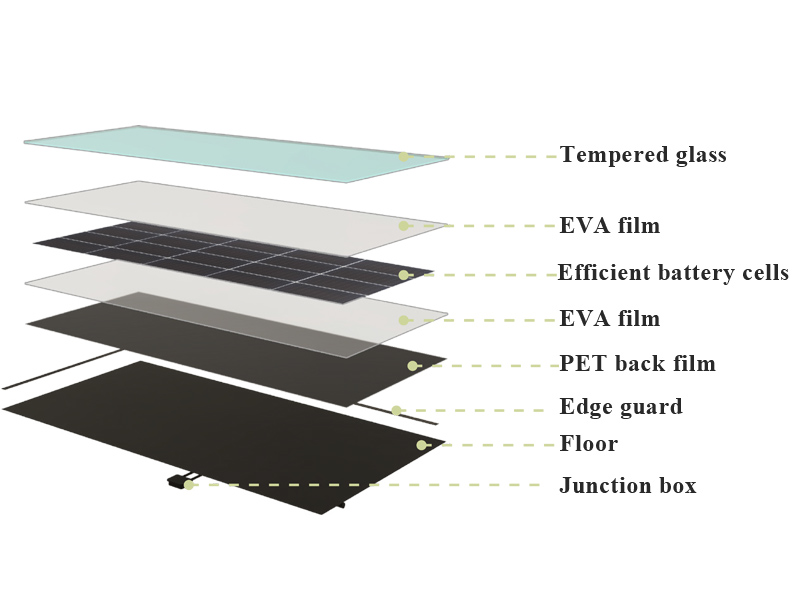

♦ Durable and Reliable， Principal materials include aluminium alloy, tempered glass, polymers and monocrystal silicon whose use period up to 25 years and we offer 10-year total warranty. Its fire-rating meets Class C, safety level reaches Class Ⅱ while the hail-rating satisfies the highest level, Class 3.

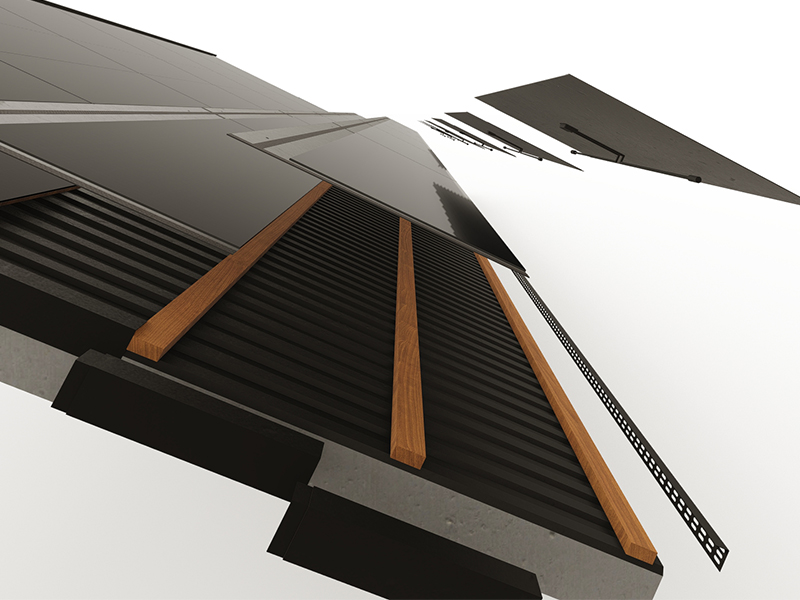

♦ Firm and Stable， Each tile has Z-shape windproof components and the purlines are made of anti-corrosive pines which make it superior in wind-resistance.
♦ Easy and Flexible Installation， Each tile, as individual, can be easily installed or disassembled and no expertise required.
♦ A Breathing Roof， The hollow design of the module and the porous arrangement design of the water guide plate .
♦ IEC 61215 & IEC 61730 & MCS & TUV CE Certified

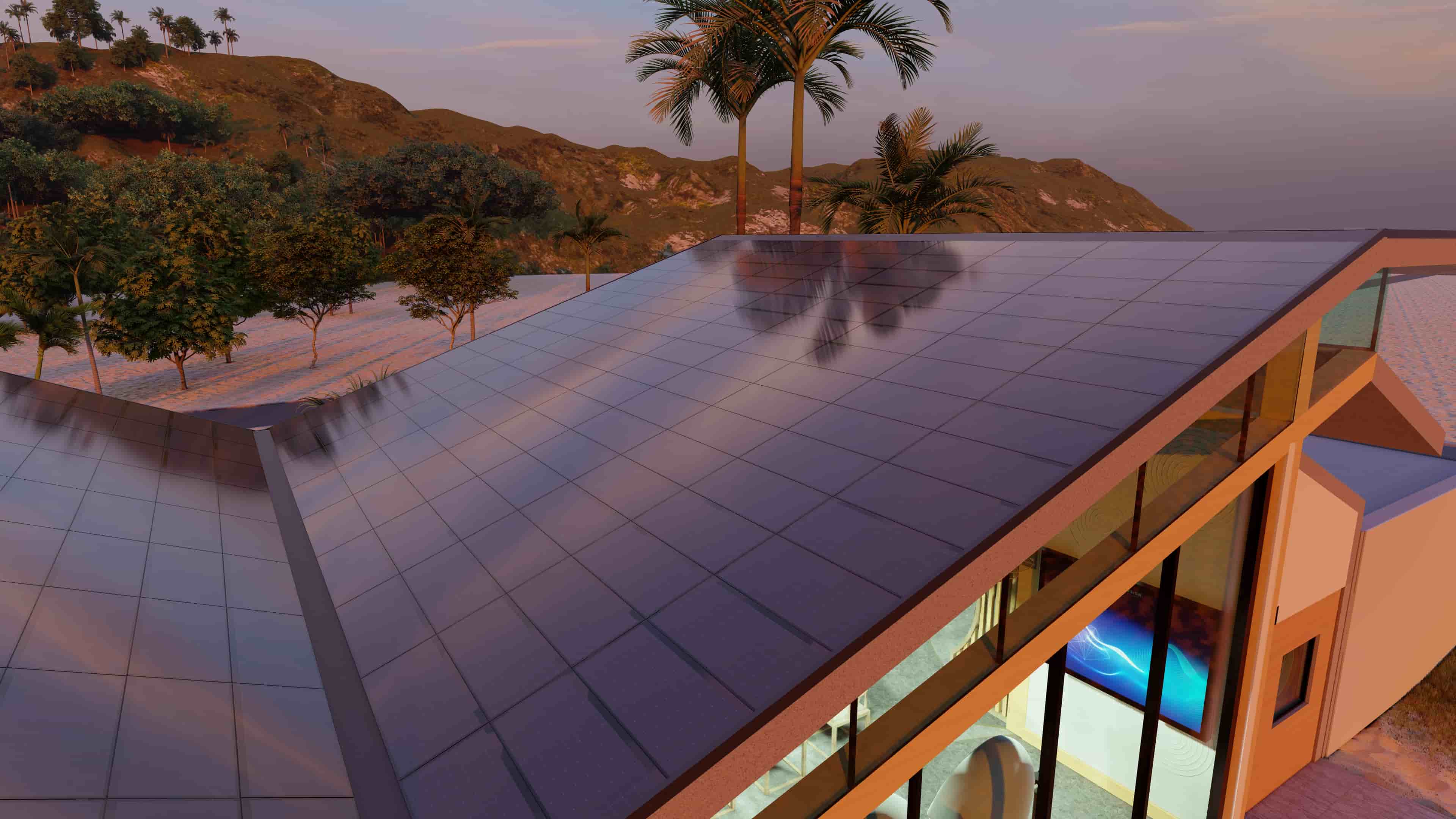

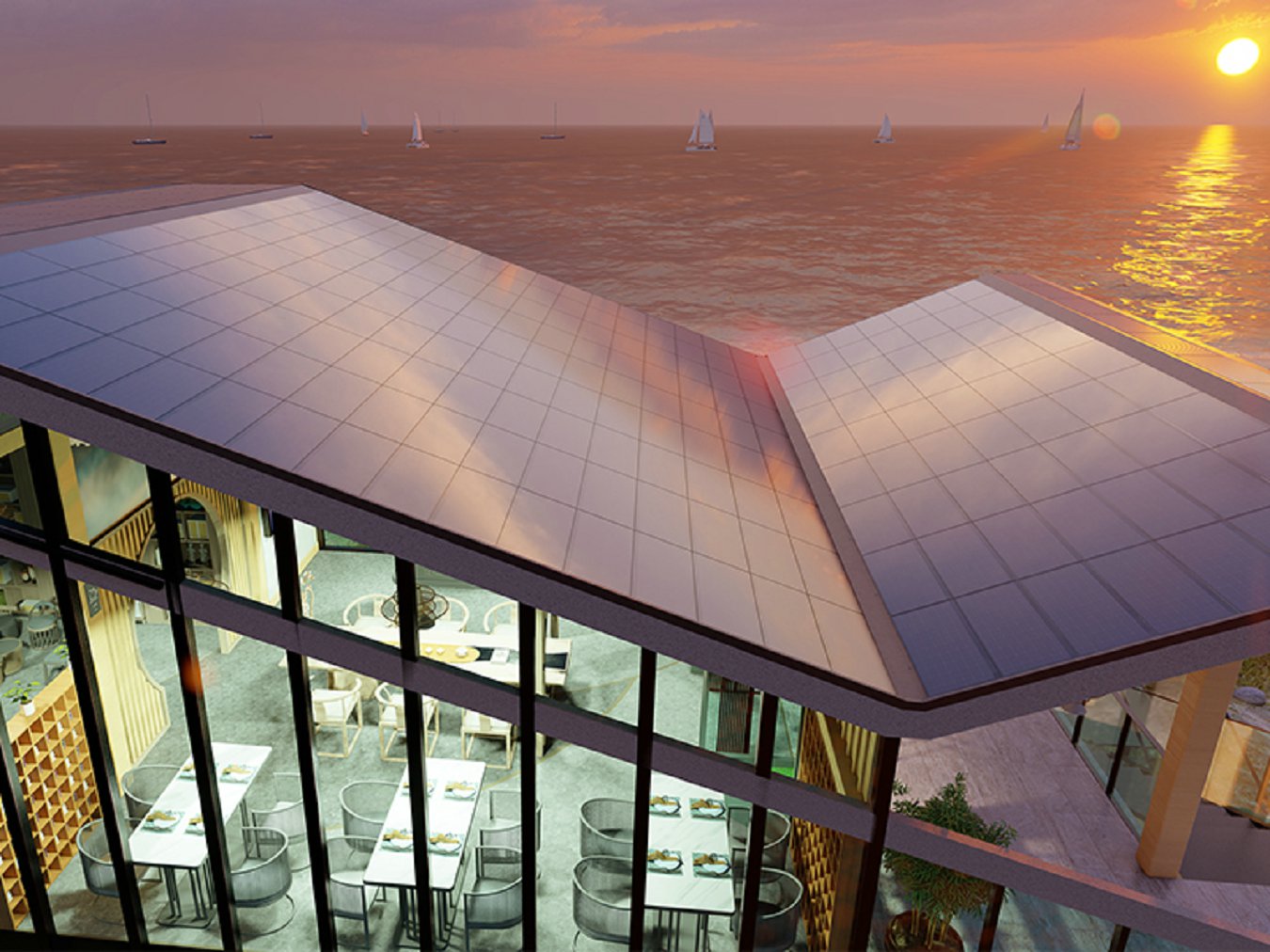

Roof effect display
Physical Characteristics
| Dimension (mm) | 973*500*8.6 |
| Weight (kg) | 9.3 |
| Dimension of Cell (mm) |
182*92 Perc monocrystal, 20 pcs |
Auxiliary Materials
Black structural adhesive
M5*50 self-tapping screws
Performance Characteristics
| Junction Box | IP67, one diode |
| Safety Level | Class Ⅱ |
| Fire-rating | Class C |
| Hail-rating | Class 3 (25.4 mm/1 in. in diameter) |
| Agency Approval | IEC 61215, IEC 61730,TUV CE, MCS |
| Voc (V) | 13.78 |
| Isc (A) | 6.75 |
| Vmp (V) | 11.8 |
| Imp (A) | 6.45 |
| Pmax (W) | 75 |
Electrical Characteristics
| Maximum series fuse rating (A) | 15 |
| Maximum system voltage (V) | 1000 |
| Maximum static load (front, Pa) | 5400 |
| Maximum static load (back, Pa) | 2800 |
| Working Temp | －40℃＋85℃ |
| Current/Voltage Tolerance | ±4%/±3% |
| Single Carton (pcs/kg) | 54/216 |
| Single Container (pcs) | 4752 |
Model: UPB-RTOV-075W (75W OVERLAP SOLAR TILE) 【Component size: 973*500*8.6mm】 【Glass size: 182*91mm】 【Component weight：9.3kg】 【Mechanical load】 Maximum static load on the front: 5400Pa Maximum static load on the back: 2800Pa Hail test: 25mm hail, impact at a speed of 23m/s
