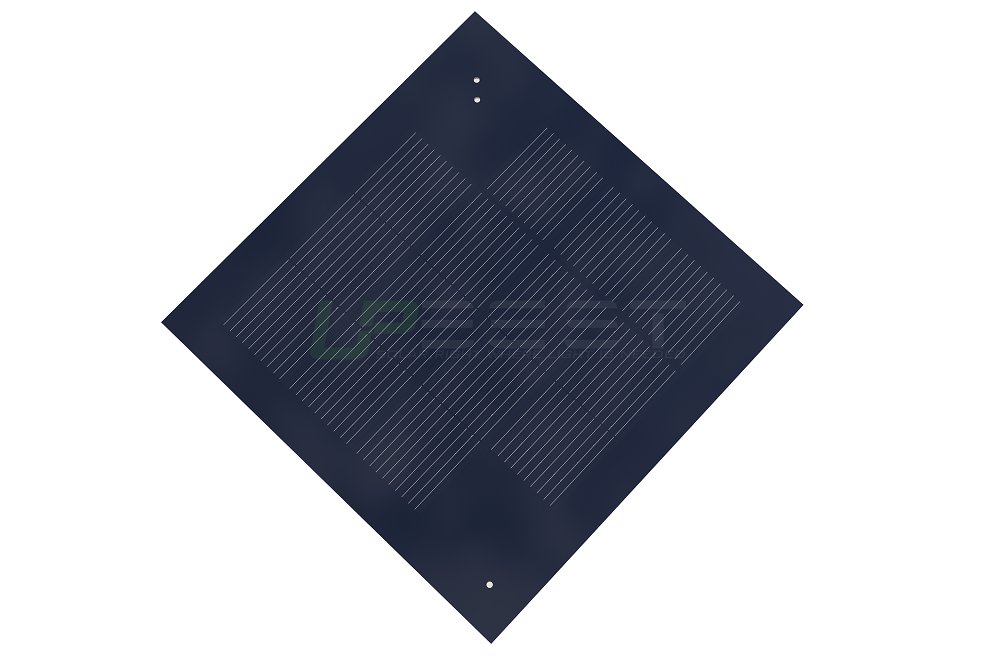

Model: UPB-RTSC-104W (104W SCALE  SOLAR TILE)

Component size: 900*900*11.4mm

Glass size: 182*182 14Pcs

Component weight:10kg



【Mechanical load】

Maximum static load on the front: 5400Pa

Maximum static load on the back: 2800Pa

Hail test: 25mm hail, impact at a speed of 23m/s



   Features

♦ Durable and Reliable, Principal materials include aluminium alloy, tempered glass, polymers and monocrystal silicon whose use period up to 25 years and we offer 10-year total warranty. Its fire-rating meets Class C, safety level reaches Class Ⅱ while the hail-rating satisfies the highest level, Class 3.

♦  Firm and Stable, Each tile has Z-shape windproof components and the purlines are made of anti-corrosive pines which make it superior in wind-resistance.

♦ Easy and Flexible Installation, Each tile, as individual, can be easily installed or disassembled and no expertise required.

♦ A Breathing Roof, The hollow design of the module and the porous arrangement design of the water guide plate .

♦ IEC 61215 & IEC 61730 & MCS & TUV CE Certified

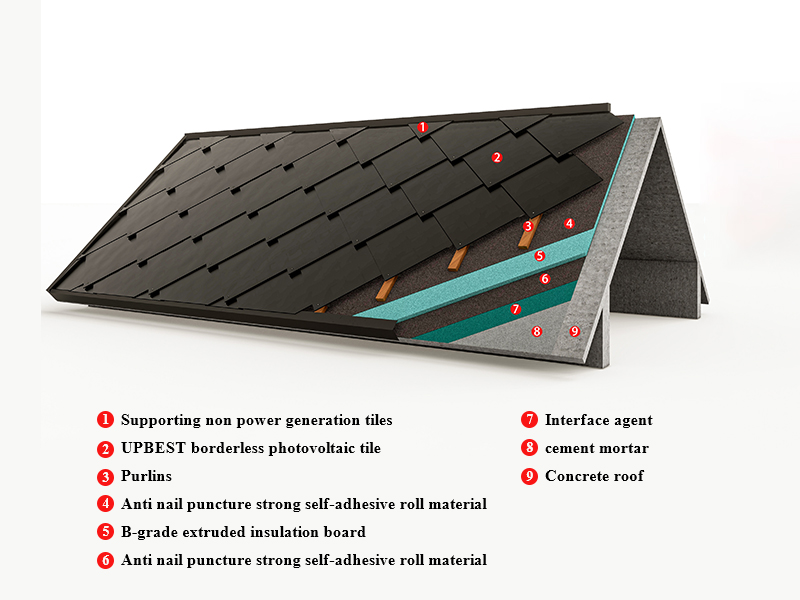

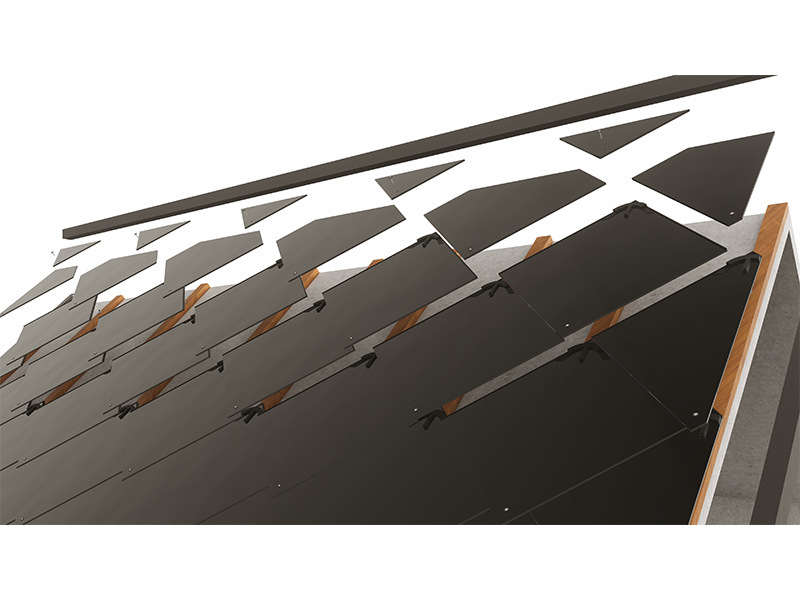

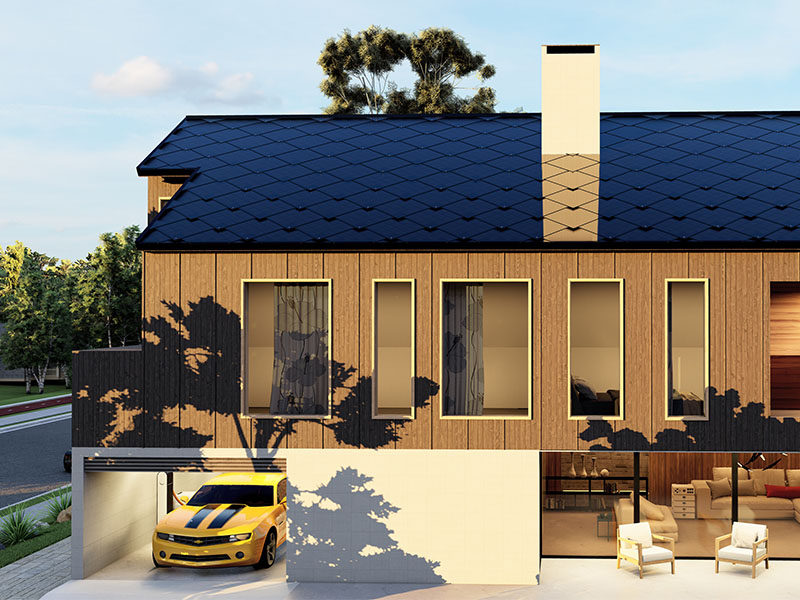

 Roof effect display

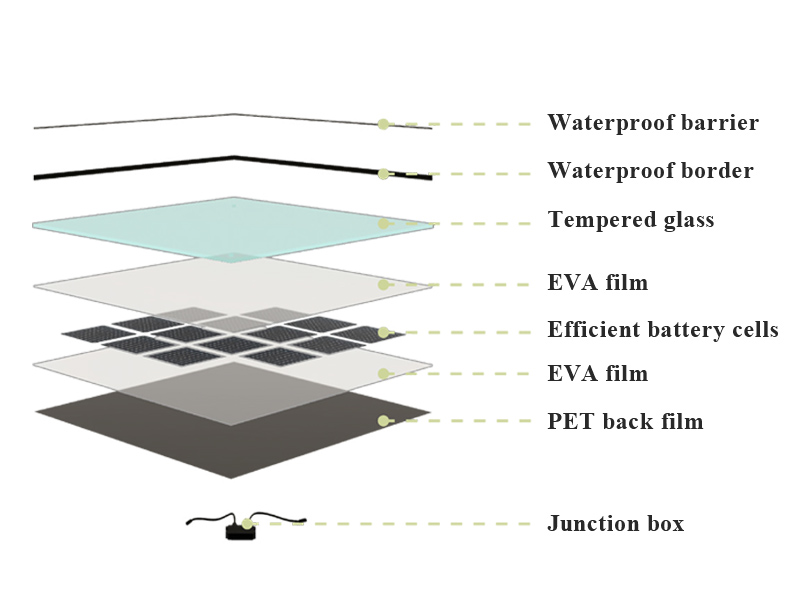

   Layered Diagram Display

  Specs

  Physical Characteristics

Dimension (mm) 900*900*11.4
Weight (kg) 10
Dimension of Cell (mm)

182*182

Perc monocrystal, 14 pcs



  Auxiliary Materials

Black structural adhesive

M5*50 self-tapping screws



  Performance Characteristics

Junction Box IP67, one diode
Safety Level Class Ⅱ
Fire-rating Class C
Hail-rating Class 3 (25.4 mm/1 in. in diameter)
Agency Approval IEC 61215, IEC 61730,TUV CE, MCS

STC (Irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25 °C or 77 °F)



Voc (V) 9.5
Isc (A) 13.39
Vmp (V) 8.2
Imp (A) 12.76
Pmax (W) 104



  Electrical Characteristics

Maximum series fuse rating (A) 15
Maximum system voltage (V) 1000
Maximum static load (front, Pa) 5400
Maximum static load (back, Pa) 2800
Working Temp -40℃+85℃
Current/Voltage Tolerance  ±4%/±3%



  Package Characteristics



Single Carton (pcs/kg) 30/300
Single Container (pcs) 3960
