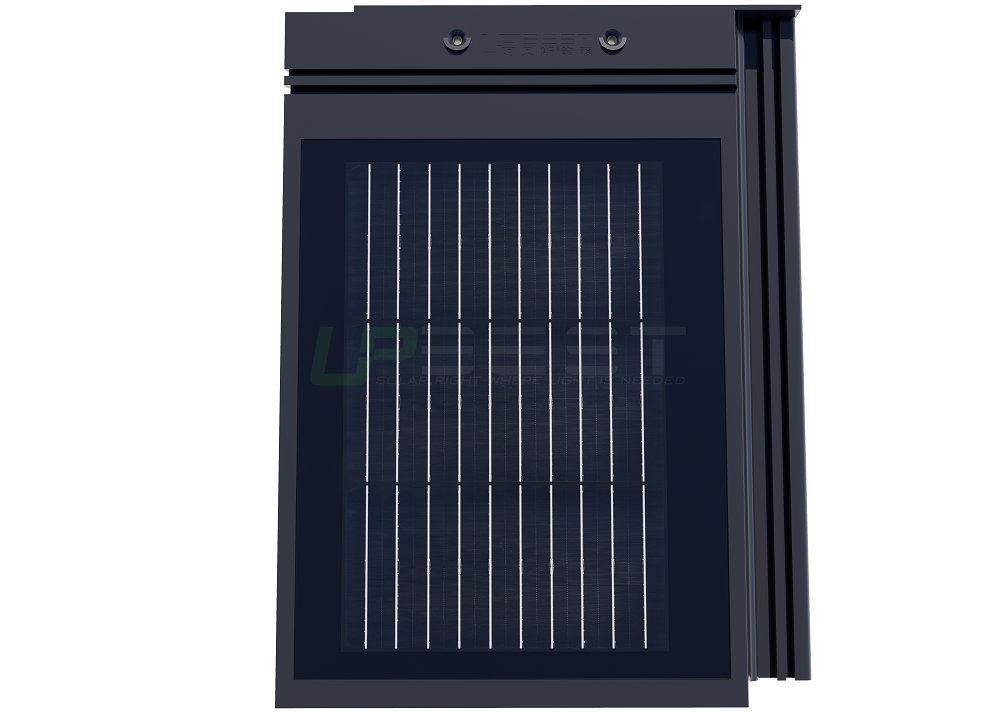

Model: UPB-RTOP-011W (011W ONE PIECE SOLAR TILE)
【Component size: 300*400*22mm】
【Glass size: 182*91mm 】
【Component weight:1.5kg】
【Mechanical load】
Maximum static load on the front: 5400Pa
Maximum static load on the back: 2800Pa
Hail test: 25mm hail, impact at a speed of 23m/s
♦ UPBEST fixed flat photovoltaic tile has a simple structure and convenient installation;
♦ Each tile is an independent individual that can be easily disassembled;
♦ The product dimensions refer to the specifications of common flat ceramic tiles in the market, and can be perfectly matched with flat ceramic tiles for use;
♦ Using composite materials as the matrix, lightweight design;
♦ The supporting purlins provide excellent structural installation convenience, while also having good wind resistance;
♦ The product strictly follows the IEC61215&61730 product manufacturing standards;
♦ The product provides a 10-year overall warranty;
Physical Characteristics
Dimension (mm) | 300*400*22 |
Weight (kg) | 1.5 |
Dimension of Cell (mm) |
182*92 Perc monocrystal, 3 pcs |
Auxiliary Materials
Flat head screws
Hexagon socket head bolts
Spacer (washer)
Performance Characteristics
Junction Box | IP67, one diode |
Safety Level | Class Ⅱ |
Fire-rating | Class C |
Hail-rating | Class 3 (25.4 mm/1 in. in diameter) |
Agency Approval | IEC 61215, IEC 61730,TUV CE, MCS |
Voc (V) | 2.07 |
Isc (A) | 6.75 |
Vmp (V) | 1.78 |
Imp (A) | 6.45 |
Pmax (W) | 11 |
Electrical Characteristics
Maximum series fuse rating (A) | 15 |
Maximum system voltage (V) | 1000 |
Maximum static load (front, Pa) | 5400 |
Maximum static load (back, Pa) | 2800 |
Working Temp | -40℃+85℃ |
Current/Voltage Tolerance | ±4%/±3% |
Single Carton (pcs/kg) | 80/120 |
Single Container (pcs) | 10880 |
