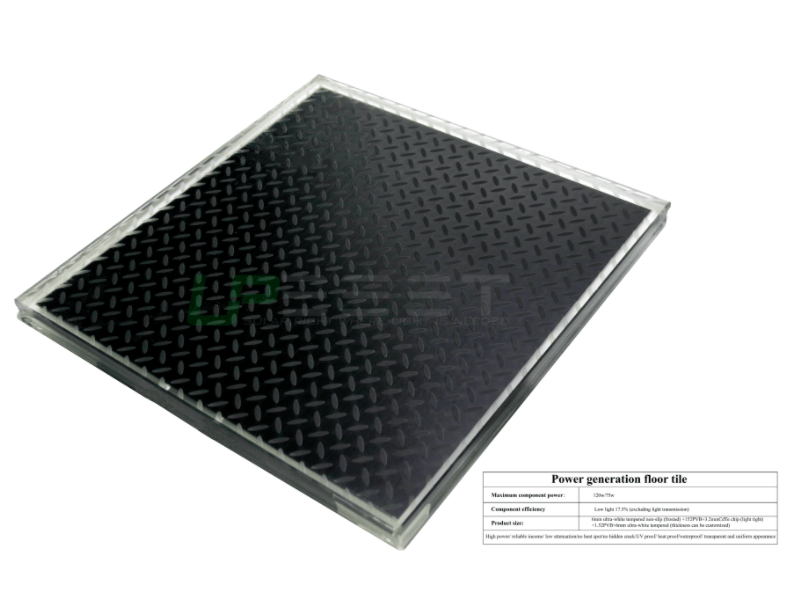

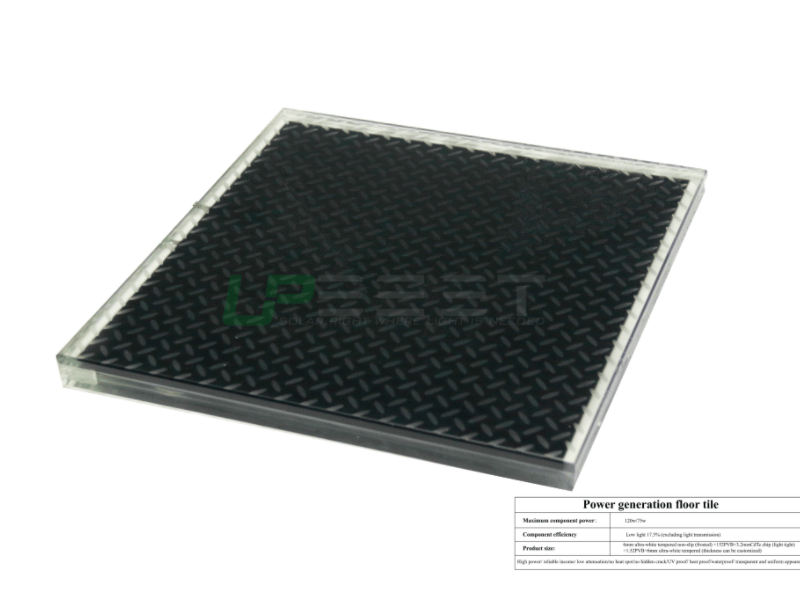

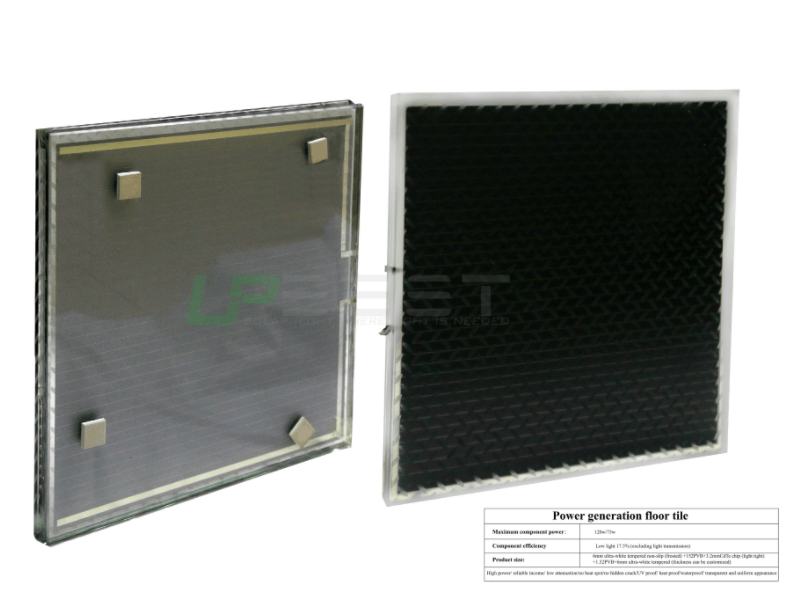

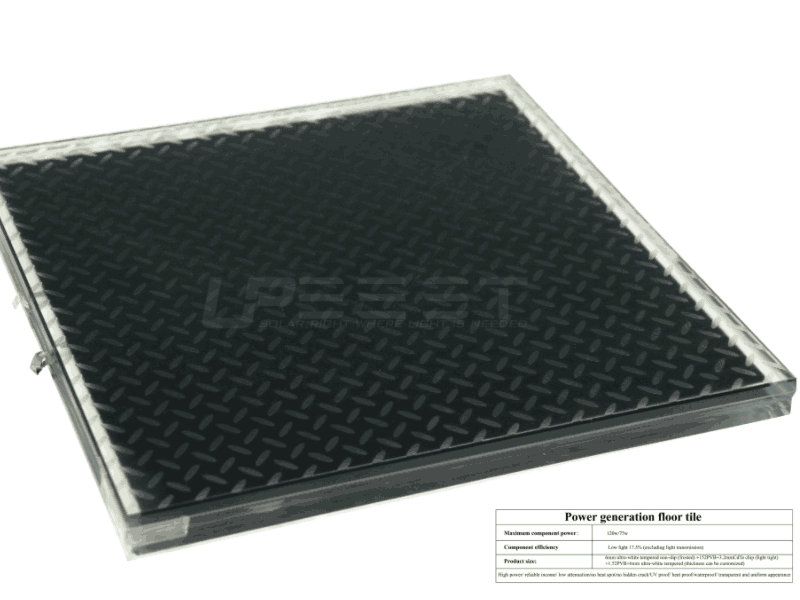

Customized Solar Installations Photovoltaic Paving Tile Solar Sidewalk 120W/75W

Model: SOLAR SIDEWALK 120W/75W

【Component efficiency: low light 17.5%（excluding light transmission）】

【Product size:】

6mm ultra-white tempered non-slip（frosted）+152PVB+3.2mmCdTe chip(light tight)

+1.52PVB+6mm ultra-white tempered (thickness can be customized)

Product categories

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Component configuration	6mm ultra white tempered anti slip glass+1.52PVB+3.2mmCdTe+1.52PVB+6mm ultra white tempered glass
Chip transmittance	Transparent 0%

model	1#
Maximum power Pm (W) (± 5%)	8
Maximum operating point voltage Vmpp (V)	20.5
Maximum operating point current Impp (A)	0.4
Open circuit voltage Voc (V) (± 5%)	26.1
Short circuit current Isc (A) (± 5%)	0.46

Peak power temperature coefficient γ_ Pm (%/℃)	-0.29
Open circuit voltage temperature coefficient β_ Voc (%/℃)	-0.28
Short circuit current temperature coefficient α_ Isc (%/℃)	0.04

Length (mm) (± 1)	300
Width (mm) (± 1)	300
Component thickness (mm) (excluding junction box)	18.2
Component weight (kg) (± 2)	3.45
Component area (m²)	0.09

Type of junction box	Side junction box
Thickness of junction box (mm)	11
Length of outgoing wire in junction box (mm)	(+160)/(-160)
Output terminal type	MC4
