Waterproof folding solar pack 60W/20V BIPV product Customized Solar pack
solar pack Customized

Waterproof folding solar pack 60W/20V BIPV product Customized Solar pack

Model: UPB 60M-12-C (60W/20V)

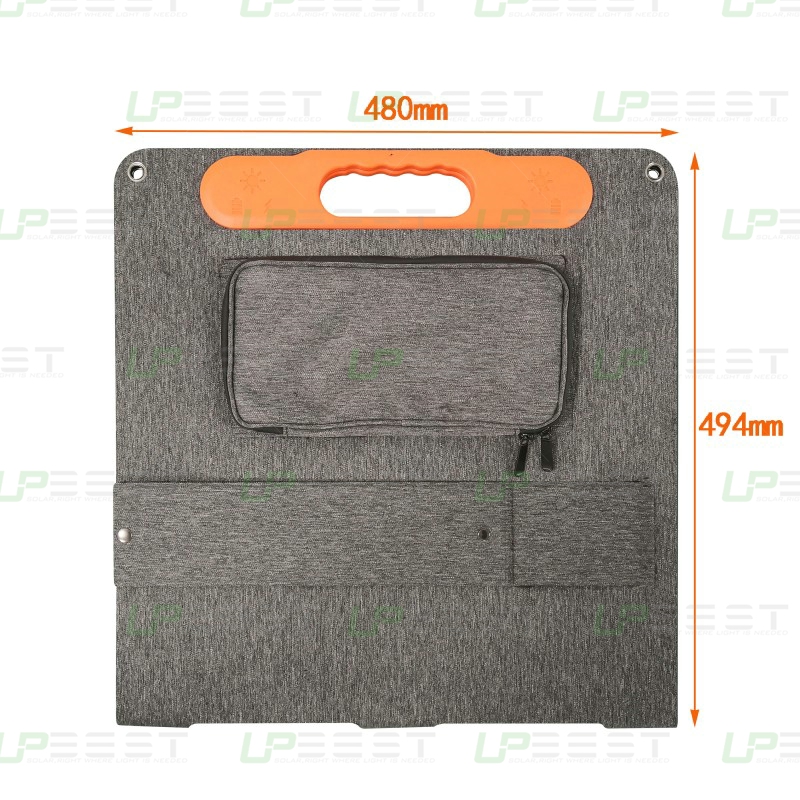

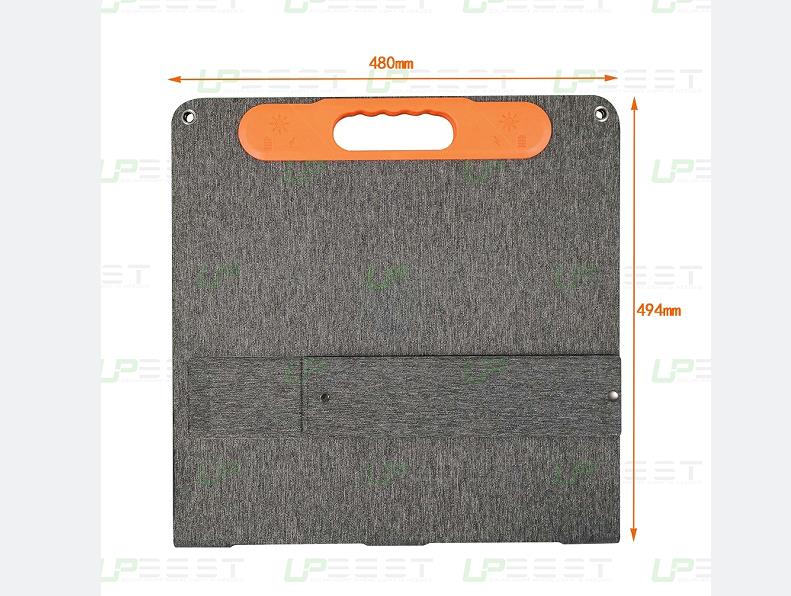

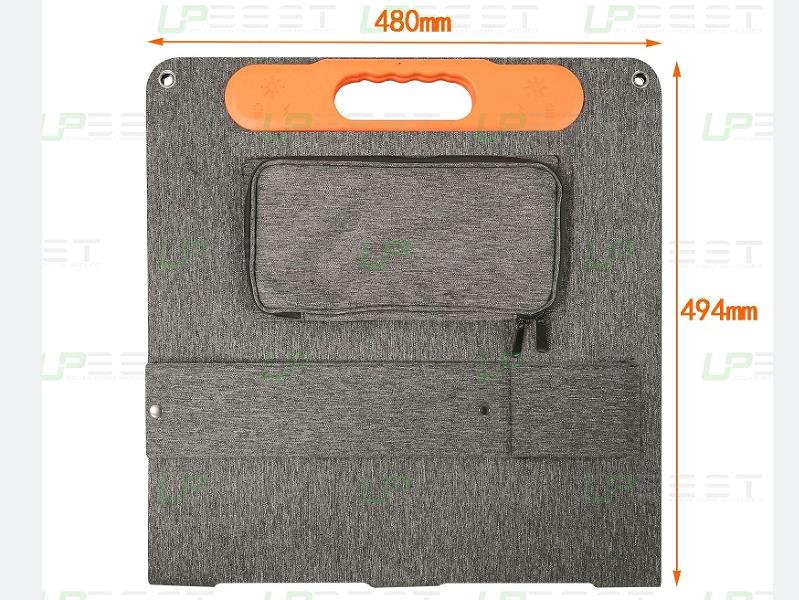

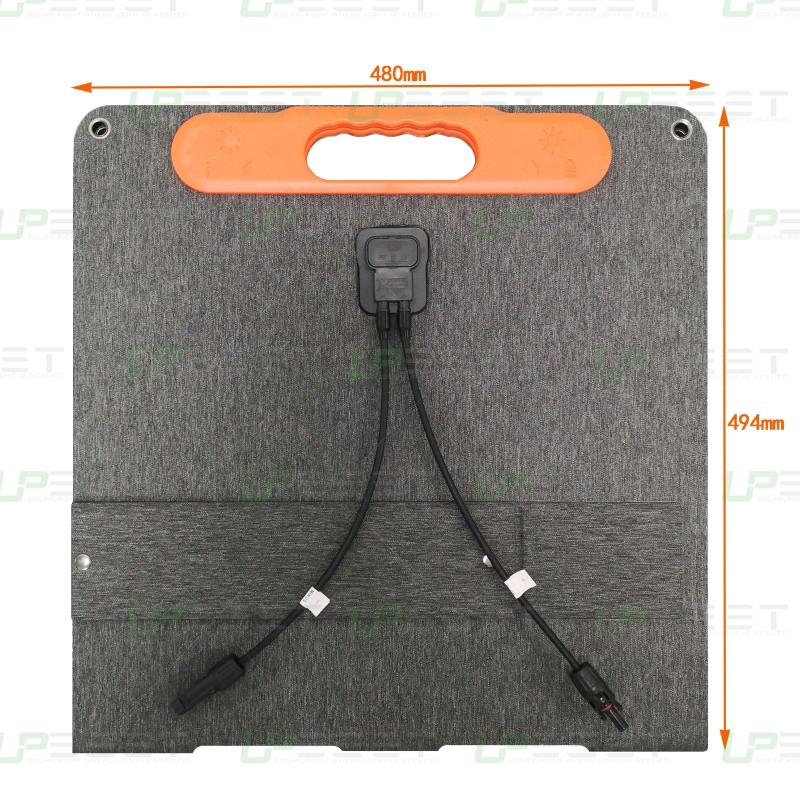

folding size: 494*480*35mm

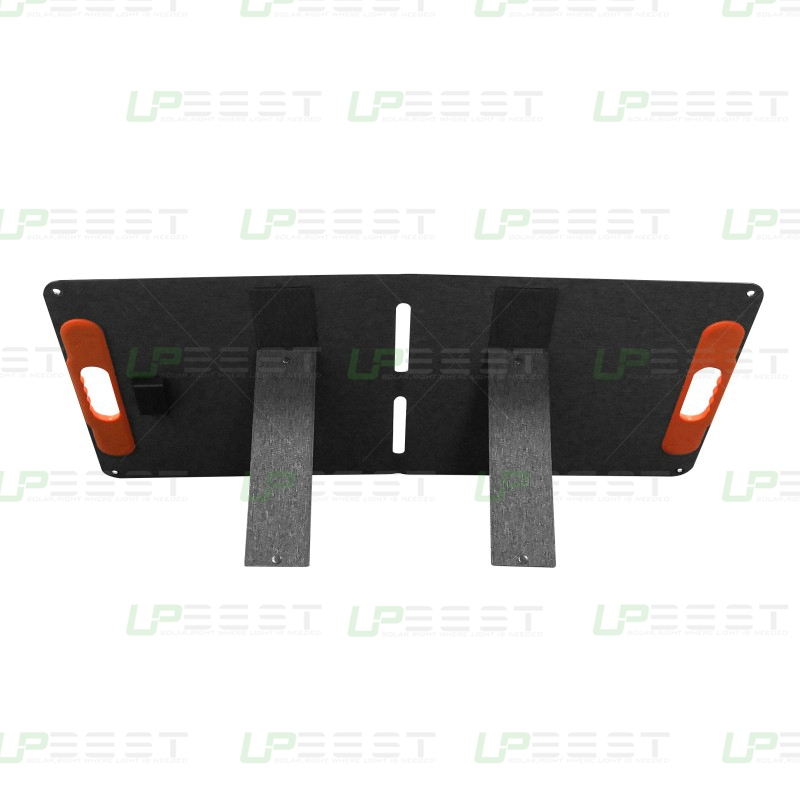

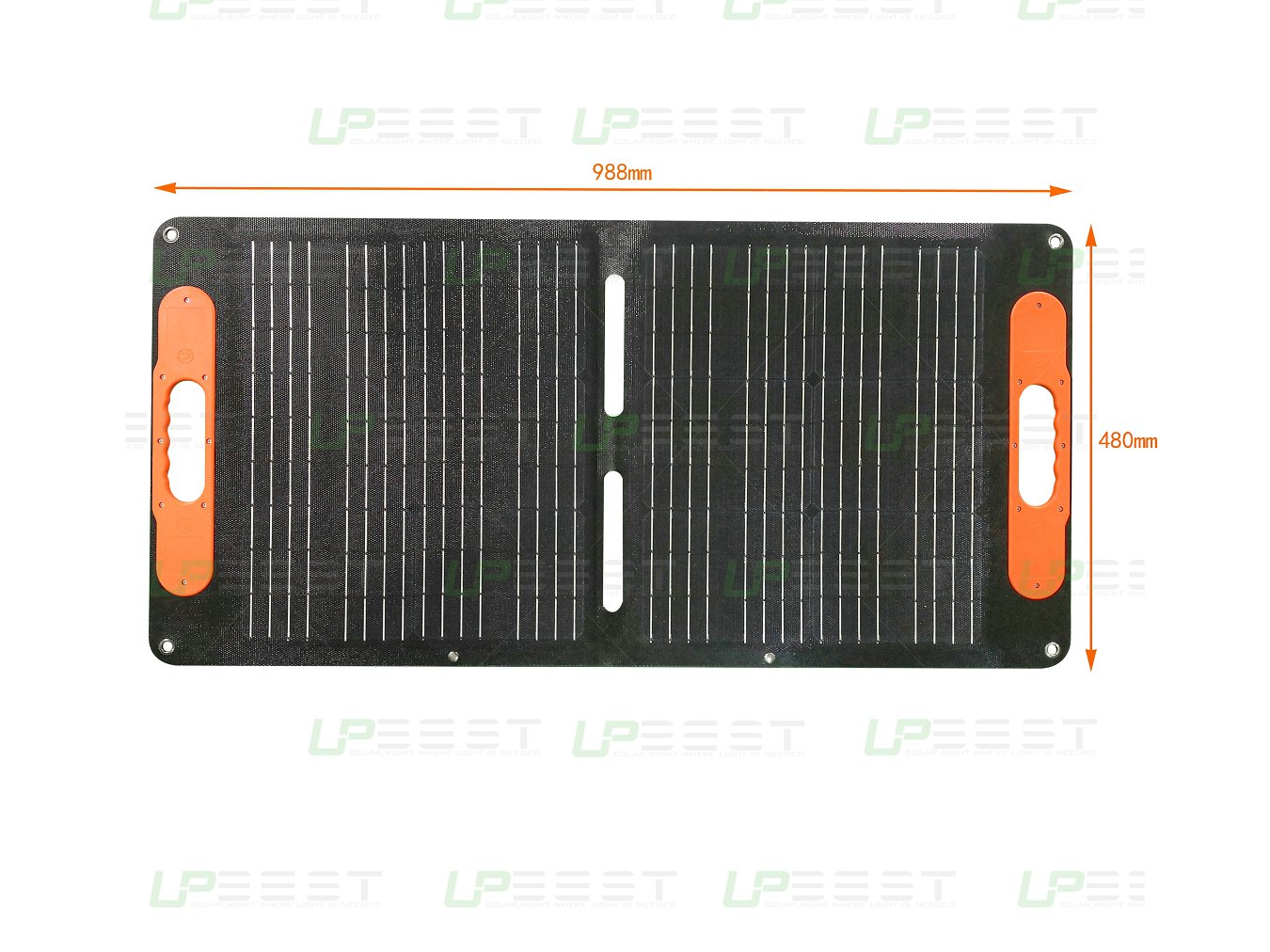

deployment size: 988*480*25mm

Component weight:2.8kg



Customizable modifications can be made according to user needs

(color/power/voltage/external dimensions, etc.)



This product is suitable for photovoltaic power generation systems

and is used for charging various energy storage power sources in outdoor sunlight.

Designed to improve the portability, drop resistance,

and ease of maintenance, installation, and access of solar panels.

   Features

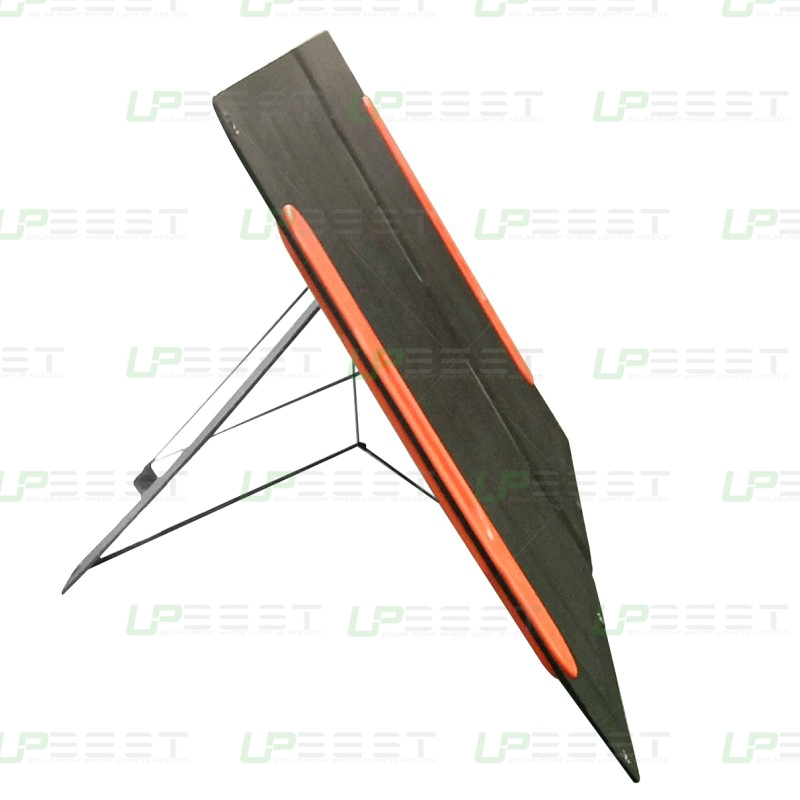

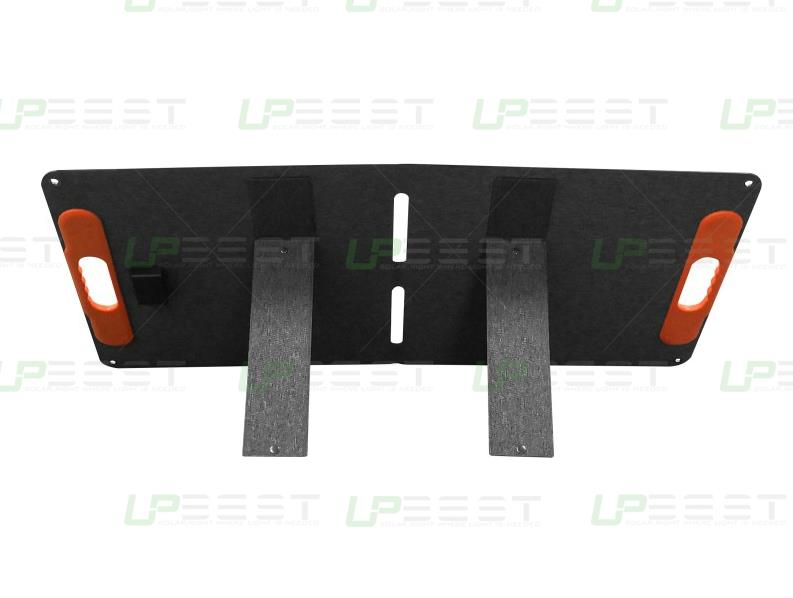

The solar foldable bag product is lightweight, compact and reasonable in appearance, with an integrated magnetic suction handle/bracket that is easy to open and close. It comes standard with a support frame, suitable for outdoor carrying and use..

♦  The solar panel adopts a packaging process of FR-4 fiberglass substrate + EVA+ETFE protective film lamination, with a product lifespan of up to 10 years..

High efficiency A-grade monocrystalline silicon battery cells are used for production, with a photoelectric efficiency of over 22%.

The product has strong waterproof and dirt resistance, and is easy to clean after being dirty.

The product has certain anti drop and impact performance

(can withstand a drop height of less than 1 meter, and the front of the solar panel should not collide with sharp objects to prevent damage to the internal solar cells).

♦  Standard 5521DC output port, output line, and customizable output interface.

Waterproof fabric and technology are used, which will not affect normal use in case of rainwater and water splashing(Be careful not to come into contact with conductive/corrosive liquids such as seawater, as it may cause internal short circuits and prevent normal power generation. If there is contact, rinse with clean water and let it dry.)

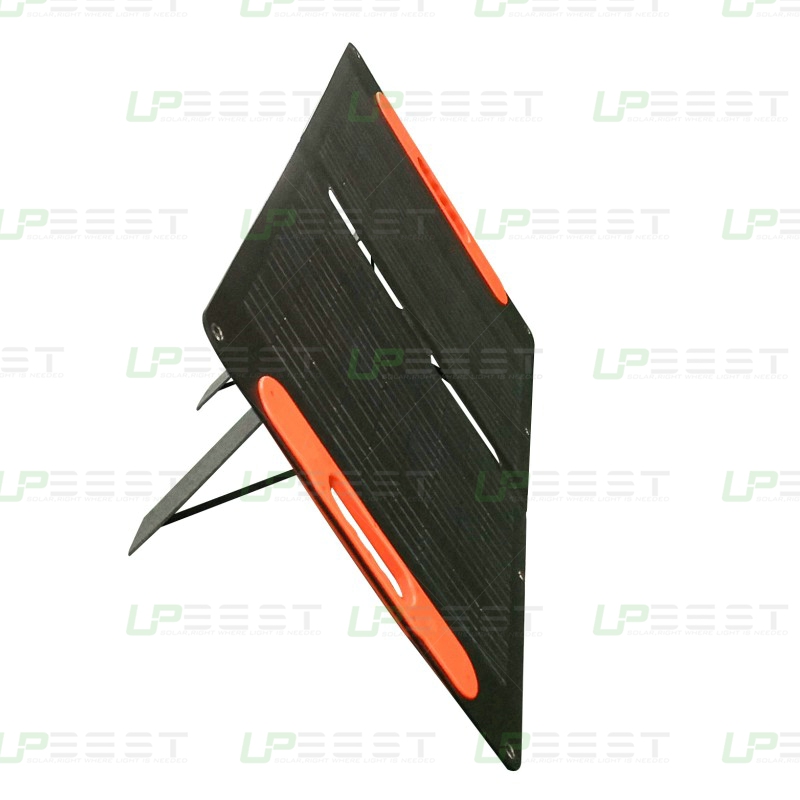

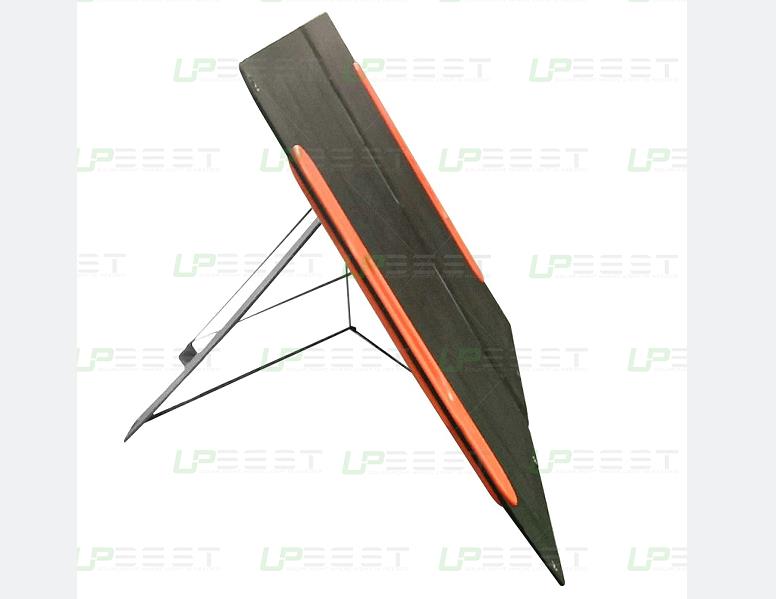

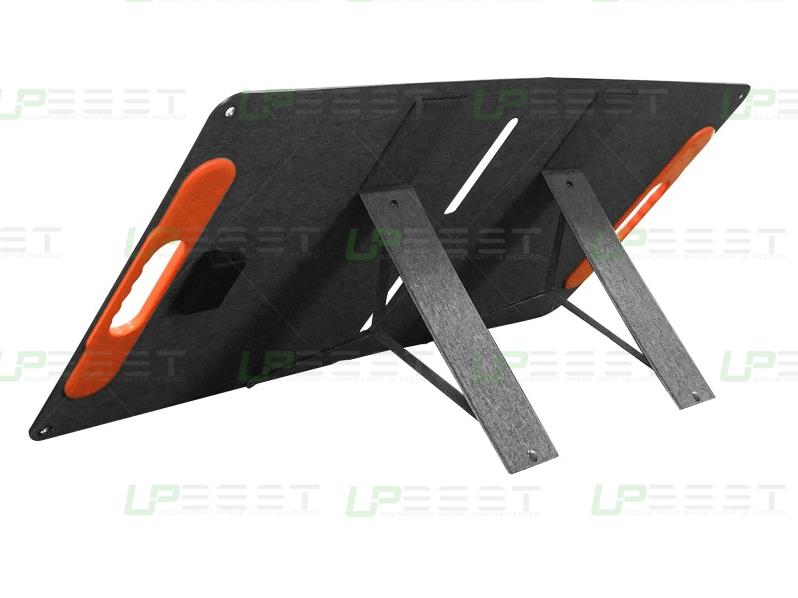

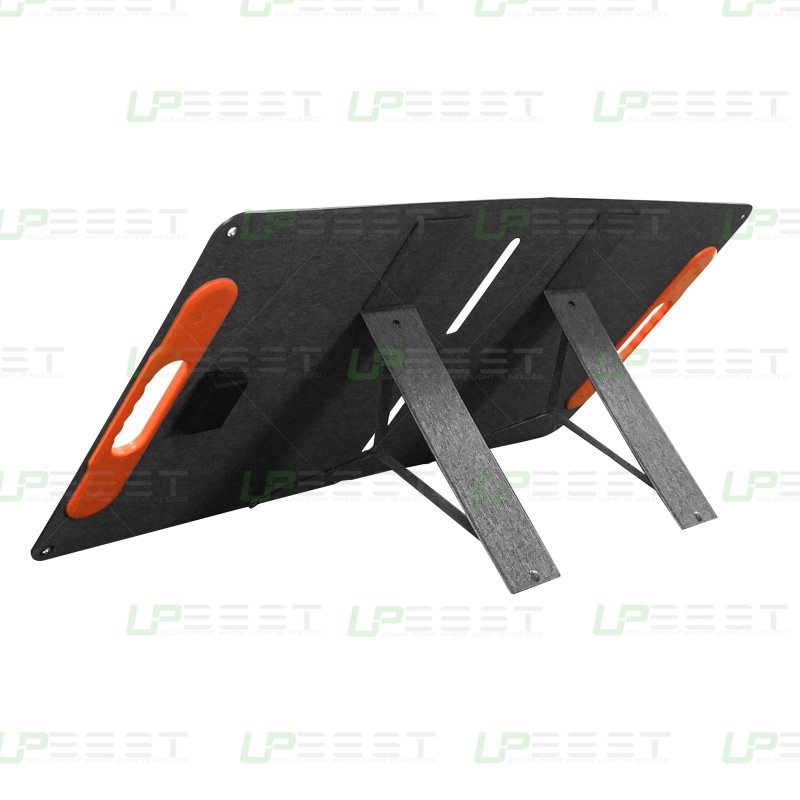

  Comprehensive display of products





 30CM line+photovoltaic connector display

  Specs



Peak power Pm(W)
60W
Open circuit voltage Voc(V)
24.0V
Max. power voltage Vmp(V)
20.0V
Max. power current Imp(A)
3.0A
Short circuit current Isc(A)
3.15A
Solar cells Efficiency
22.0%
Solar panel model&number
30W*2PCS
Folding size
494*480*35mm
Deployment size
988*480*25mm
Reference weight
2.8kg





solar cell
Efficient A-grade monocrystalline silicon battery cells
Solar panel Front cover(material)

Transparent ETFE

Transparent composite materials on the surface of battery cells enhance protection

Solar panel backboard(material)
Fiberglass board
solar folding handbag material
Gray (waterproof) color/pattern can be customized and screen printed



NOCT/Operating temperature limits

Rated working temperature: 48 ± 2 ℃

Working temperature range: -40 ℃ -+85 ℃

Storage temperature limits -10 ℃ -+30 ℃
Waterproof grade IP65
Power/voltage/current temperature coefficient -0.35%/℃; - 0.272%/℃; + 0.044%/℃
STC Standard Test Conditions

Irradiance: 1000W/m2,

temperature: 25 ℃, AM: 1.5

  Package Characteristics

Outer dimensions of single piece aircraft box

520 * 500 * 50mm

Gross weight: 3.2KG/box

Outer dimensions of the outer box

540 * 270 * 525mm (5 pcs/large box)

Gross weight: 17.5KG/box
