Colored Photovoltaic Glass Modules Photovoltaic curtain wall 1920*1200*15.04 mm

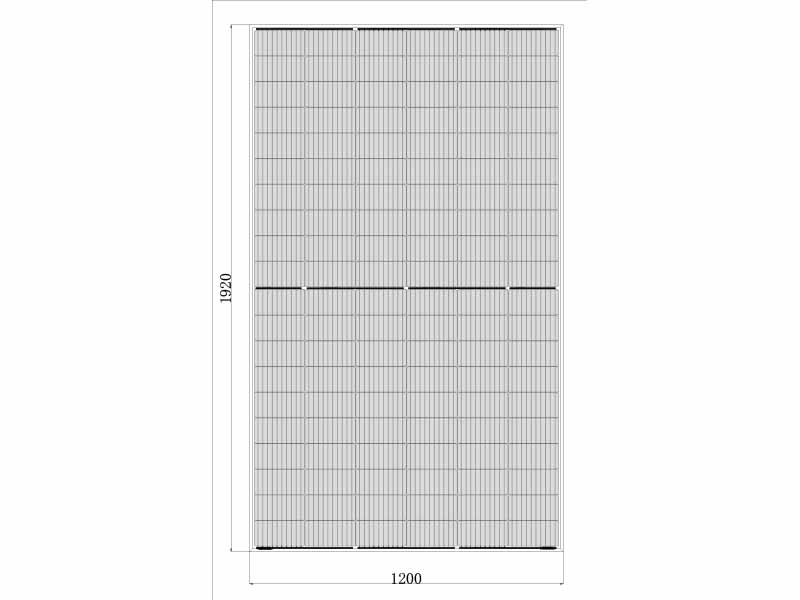

【Size of Module：1920*1200*15.04 mm 】
♦ Customization of patterns, sizes, and glass thickness can be provided to customers according to their design requirements
♦ Can replace the majority of existing building facade decorative materials for use
♦ High color durability, easy to clean and corrosion-resistant, low refractive index, ensuring power generation efficiency
Electrical parameters
| Power Output Pmax | 380 W |
| Open Circuit Voltage Voc | 40.8 V |
| Short Circuit Current Isc | 11.35 A |
| Working Voltage | 34.8 V |
| Working Current | 10.92 A |
Structure parameters
| Size of Module | 1920*1200*15.04 mm |
| Thickness of Glass | 6+6 mm |
| Weight | 86.6 kg |
| Type of Cell | 182 mm |
| Connector | MC4 |
| J-box Prating | IP67 |
| Length of Connector | 90cm |
| Film | PVB/POE/EVA |
Temperature Charactristics
| Nominal Module Operating Temperature | 45℃ |
| Temperature Coefficient(Pmax) | -0.38%/℃ |
| Temperature CoefficientVoc | -0.36%/℃ |
| Temperature Coefficient lsc | 0.07%/℃ |
Performance Parameters
| Maximum System Voltage | 1500V |
| Maximum Fuse Rated Current | 20A |
【Size of Module：1920*1200*15.04 mm 】
【Size of Module： 2000*2000*15.04 mm 】
【Size of Module：2092*1044mm 】
【Size of Module：1752*1044 mm 】
