Photovoltaic curtain wall Colorful Photovoltaic Modules 2092*1044mm

Photovoltaic curtain wall  Colorful Photovoltaic Modules 2092*1044mm
Photovoltaic curtain wall  Colorful Photovoltaic Modules 2092*1044mm
Photovoltaic curtain wall  Colorful Photovoltaic Modules 2092*1044mm
Photovoltaic curtain wall  Colorful Photovoltaic Modules 2092*1044mm

Photovoltaic curtain wall Colorful Photovoltaic Modules 2092*1044mm

【Size of Module:2092*1044mm

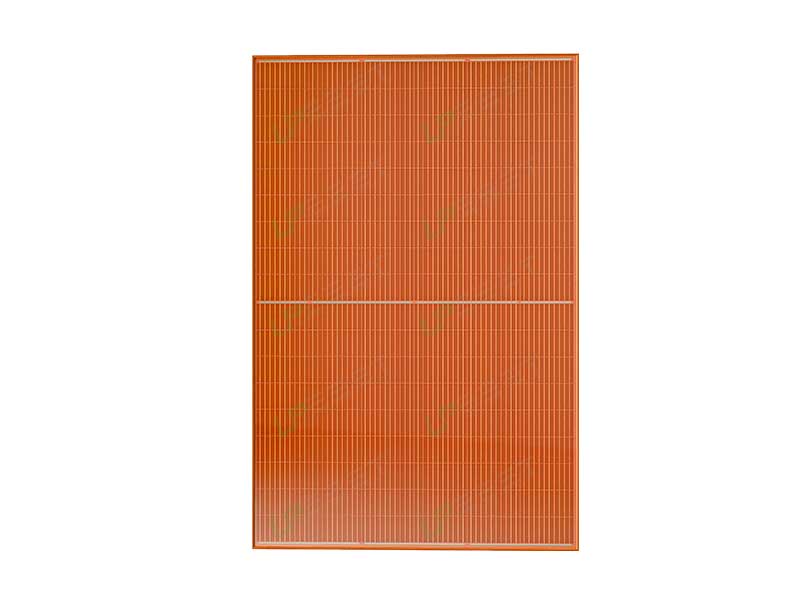

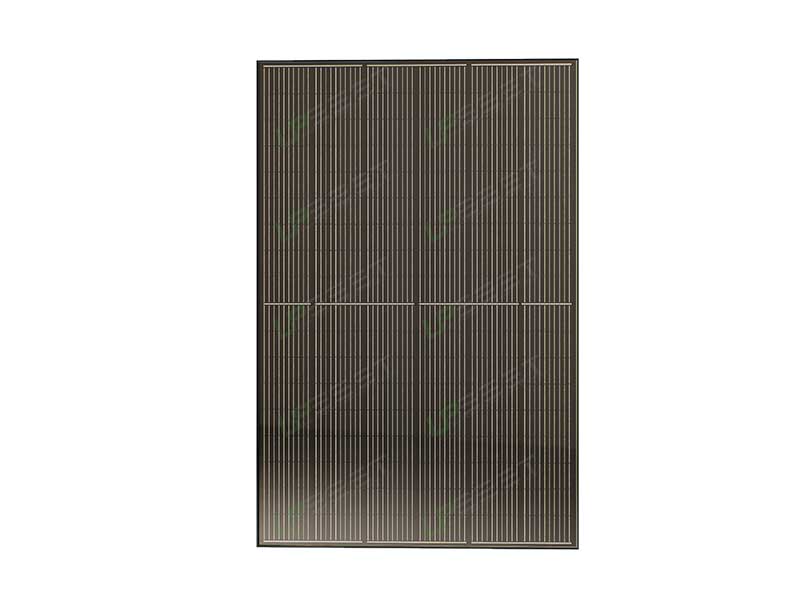

   Color Innovation

♦  We can provide customers with color customization according to their design requirements

♦  We have developed 28 common universal colors and 12 high-quality spectral colors that are suitable for use

♦  Color customization can be integrated with buildings, saving energy and reducing emissions while maintaining aesthetics

  Electrical parameters

Power Output Pmax 400 W
Open Circuit Voltage Voc    48.9 V
Short Circuit Current Isc  9.95 A
Working Voltage   41.8 V
Working Current 9.57 A



  Structure parameters

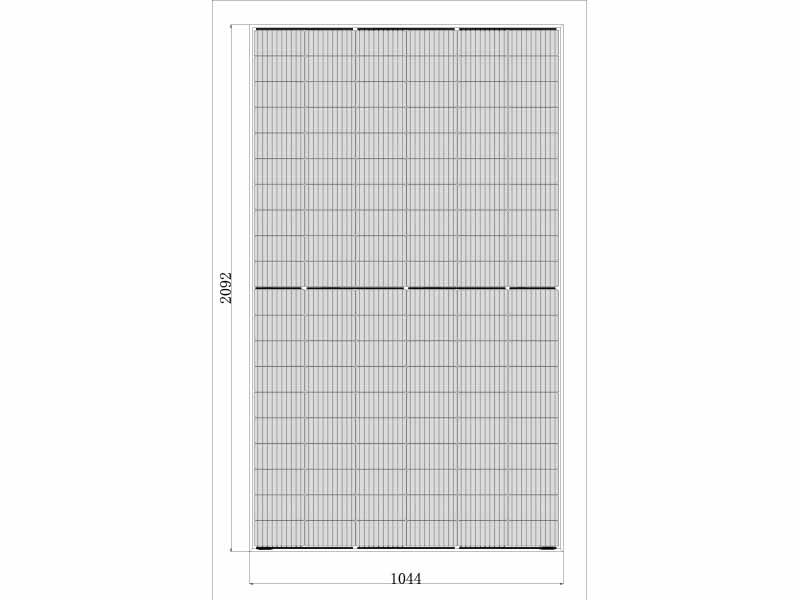

Size of Module 2092*1044mm
Thickness of Glass 35 mm
Weight 24 kg
Type of Cell 166 mm
Connector MC4
J-box Prating IP67
Length of Connector 90cm
Film PVB/POE/EVA

  Temperature Charactristics

Nominal Module Operating Temperature 45℃
Temperature Coefficient(Pmax) -0.38%/℃
Temperature CoefficientVoc  -0.36%/℃
Temperature Coefficient lsc    0.07%/℃



  Performance Parameters

Maximum System Voltage 1500V
Maximum Fuse Rated Current  20A

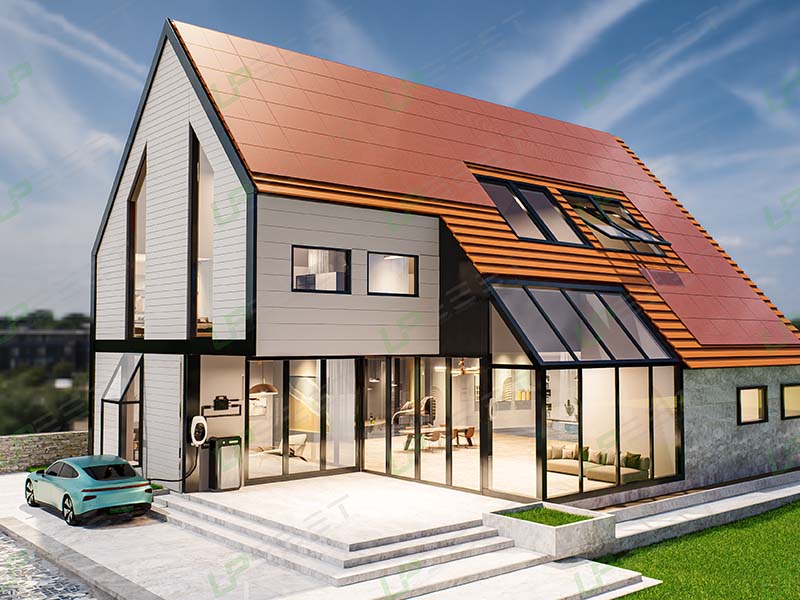

Product  display
