Photovoltaic Glass Modules-Transmittable Photovoltaic curtain wall 2000*2000*15.04 mm
【Size of Module： 2000*2000*15.04 mm 】

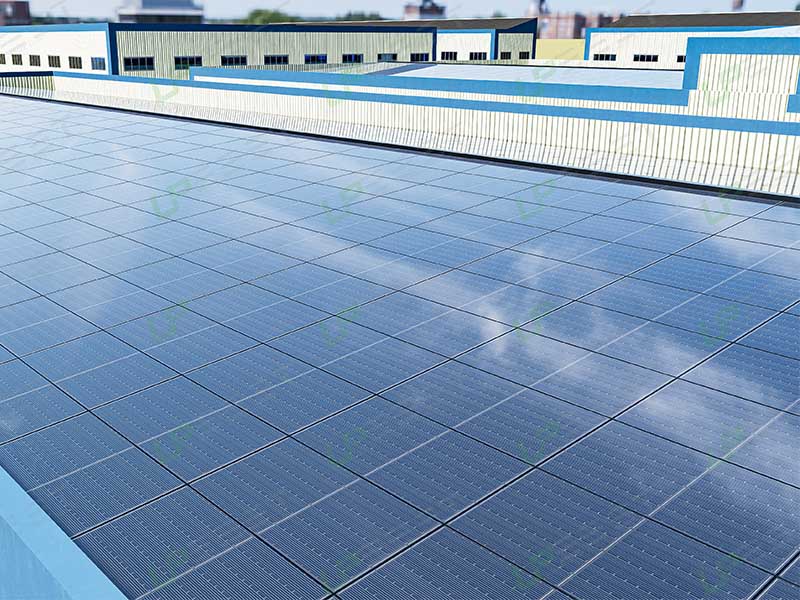

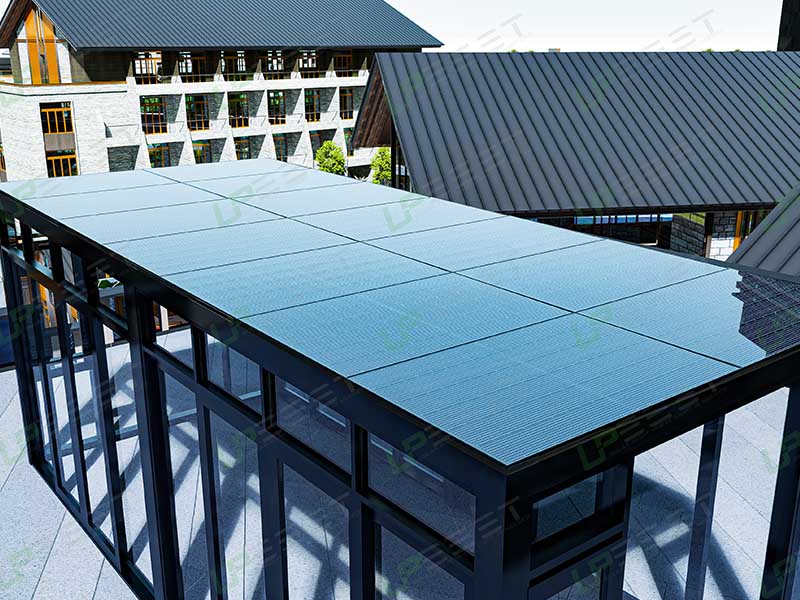

♦ Can be applied to scenarios such as sunrooms, factory skylights, and building skylights
♦ Conventional light transmittance can reach 20%~40%, meeting daily lighting needs
♦ Customization can be made according to the requirements of light transmittance, size, and thickness
Electrical parameters
| Transmittance Vlt |
50% |
| Power Output Pmax | 265 W |
| Open Circuit Voltage Voc | 24.5 V |
| Short Circuit Current Isc | 13.17 A |
| Working Voltage | 21.1 V |
| Working Current | 12.59 A |
Structure parameters
| Size of Module | 2000 * 2000 * 15.04 mm |
| Thickness of Glass | 6+6 mm |
| Weight | 90.2 kg |
| Type of Cell | 182 mm |
| Connector | MC4 |
| J-box Prating | IP67 |
| Length of Connector | 90cm |
| Film | PVB/POE/EVA |
Temperature Charactristics
| Nominal Module Operating Temperature | 45℃ |
| Temperature Coefficient(Pmax) | -0.38%/℃ |
| Temperature CoefficientVoc | -0.36%/℃ |
| Temperature Coefficient lsc | 0.07%/℃ |
Performance Parameters
| Maximum System Voltage | 1500V |
| Maximum Fuse Rated Current | 20A |

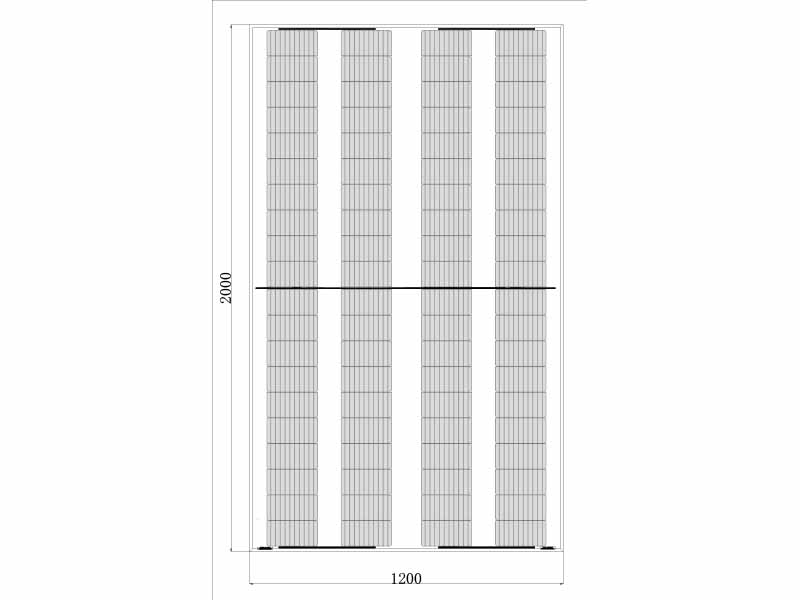

【Size of Module：1920*1200*15.04 mm 】
【Size of Module： 2000*2000*15.04 mm 】
【Size of Module：2092*1044mm 】
【Size of Module：1752*1044 mm 】
